M-67IS Rotary Tower w/ Integral Stand - Variable speed tower up to 12 RPM; 245% prestretch (standard); unlimited load capacity.



M-66IS Rotary Tower w/ Integral Stand - Variable speed tower up to 14 RPM; 245% prestretch (standard); unlimited load capacity.

M-57GS Rotary Tower Gantry Style - Variable speed Tower up to 12 RPM; 245% prestretch (standard); unlimited load capacity.

M-55GS Rotary Tower Gantry Style - Variable speed Tower up to 18 RPM; 245% prestretch (standard); unlimited load capacity.



Click here to see our plastic stretch films

The Orion M-67IS and M-66IS are semi-automatic, rotary tower integral stand style wrapping machines designed for fast and efficient stretch wrapping of pallet loads.  Loads are brought to the system via pallet jack or fork-lift, placed directly on the floor and unitized as the machine's rotary tower revolves around the load.   There is no maximum load limit for these machines.

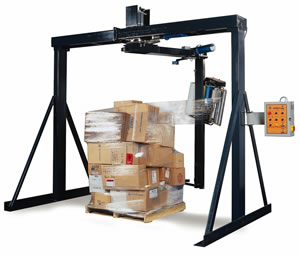

The Orion M-57GS and M-55GS are semi-automatic, rotary tower gantry style wrapping machines designed for fast and efficient stretch wrapping of pallet loads as well.  As with the integral stand models the pallet loads are brought to the system via pallet jack or fork-lift, placed directly on the floor and unitized as the machine's rotary tower revolves around the load.   There is no maximum load limit for these machines.  The gantry style allows for faster rotational speeds and can help to reduce the potential for injury/damage to personnel and to the equipment.

Key Benefits

bulletLight or Unstable Loads - Rotary tower wrapping method is well-suited for extra light, unstable or heavy loads.
bulletPowered Prestretch - Insta-Thread film delivery system is engineered to accurately pre-stretch film at a fixed rate and deliver it to the load at a constant tension level.
bulletEconomical - High performance film delivery system yields 245%.
bulletDurable - Rugged 100% structural steel construction for years of reliable operation.  Precision ring bearing turntable support/ ANSI chain & sprocket drive.
bulletCapacity - Handles 53" x 53" (max) loads for the M-67IS and M-57GS models, and 58" x 58" (max) loads for the M-66IS and M-55GS.  Unlimited load weight capacity because pallets are wrapped on the floor.
bulletHeight Adjustment - Automatically adjusts for various load heights (up to 80" maximum standard).
bulletNon-proprietary Parts - Non-proprietary replacement parts are "off the shelf" and can be purchased from your supplier or from Novatech.
bulletSelf-Threading - Self-threading Insta-Threadô carriage makes loading film fast, safe and easy.
bulletPower - Requires 115 volt, single phase, 60Hz electrical.
bulletWarranty - Orion warrants the above equipment for 3 years for all parts, and 5 years for structural components.
